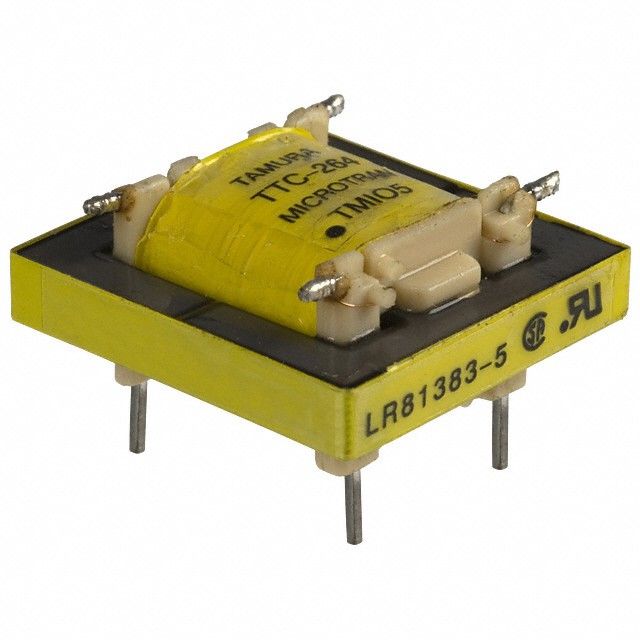

TTC-264M
Data Sheet
Attribute
Description
Manufacturer Part Number
TTC-264M
Manufacturer
Description
TRANSF TELE COUP 600:470 100MADC
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | TTC | |
| Voltage Transformer Design | Data/Voice Coupling | |
| Amperage Flow | 100mA DC | |
| AC Resistance Value | 600 Primary, 470 Secondary | |
| Signal Insertion Attenuation | 2.5dB Typ. | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | - | |
| Maximum Mounted Height | - | |
| Lead Termination Type | - |
Description
Measures resistance at forward current Data/Voice Coupling for LED or diode evaluation. Accommodates a current rating of 100mA DC for reliable electrical performance. Supports high-level output current indicated as 100mA DC. Set with 600 Primary, 470 Secondary impedance to ensure signal integrity. Provides 2.5dB Typ. insertion loss for reduced signal attenuation. Mounting style Through Hole for structural integrity. Product or component classification series TTC. Type of transformer Data/Voice Coupling for electrical conversion.
