Attribute
Description

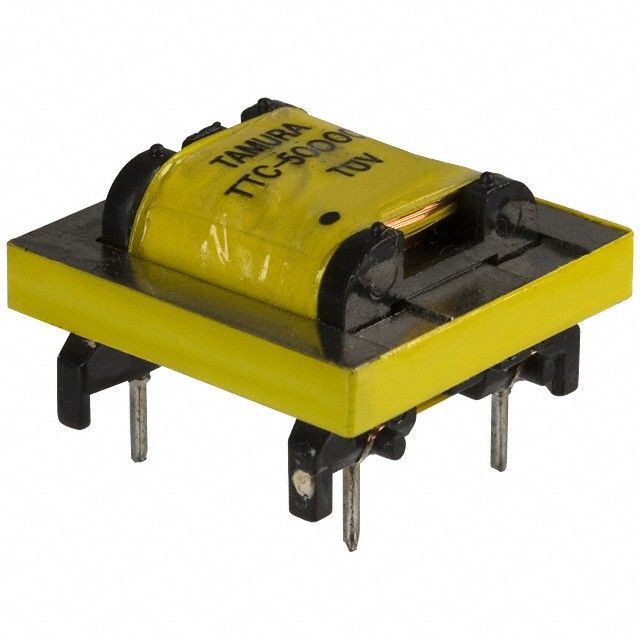

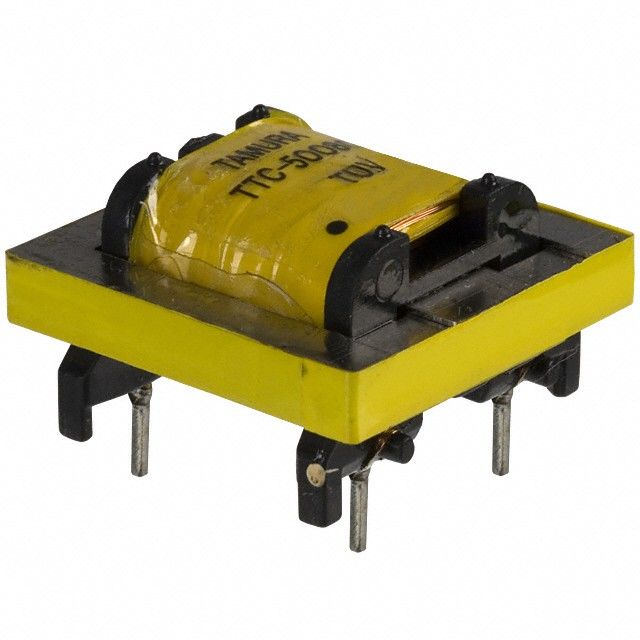

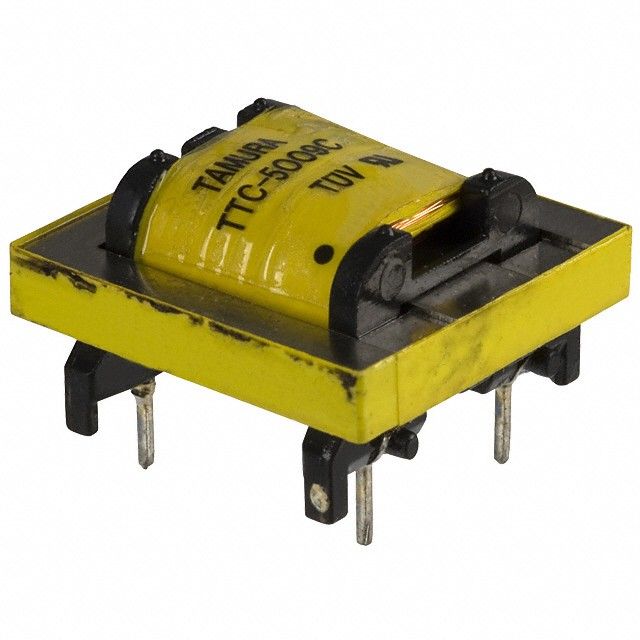

Manufacturer Part Number
TTC-5009
Manufacturer
Description
TRANSFORMER COUPLING 600:530 OHM
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | TTC | |
| Voltage Transformer Design | - | |
| Amperage Flow | - | |
| AC Resistance Value | 600 Primary, 530 Secondary | |
| Signal Insertion Attenuation | 1dB Typ. | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | 22.50mm L x 23.10mm W | |
| Maximum Mounted Height | 13.80mm | |
| Lead Termination Type | PC Pin |
Description
Maximum seated height of 13.80mm for components mounted on the board. Set with 600 Primary, 530 Secondary impedance to ensure signal integrity. Provides 1dB Typ. insertion loss for reduced signal attenuation. Mounting style Through Hole for structural integrity. Product or component classification series TTC. Dimensions 22.50mm L x 23.10mm W for mechanical or electrical components. Dimension measurement 22.50mm L x 23.10mm W for component details. Termination type PC Pin for connector or device.
