Attribute
Description
Manufacturer Part Number

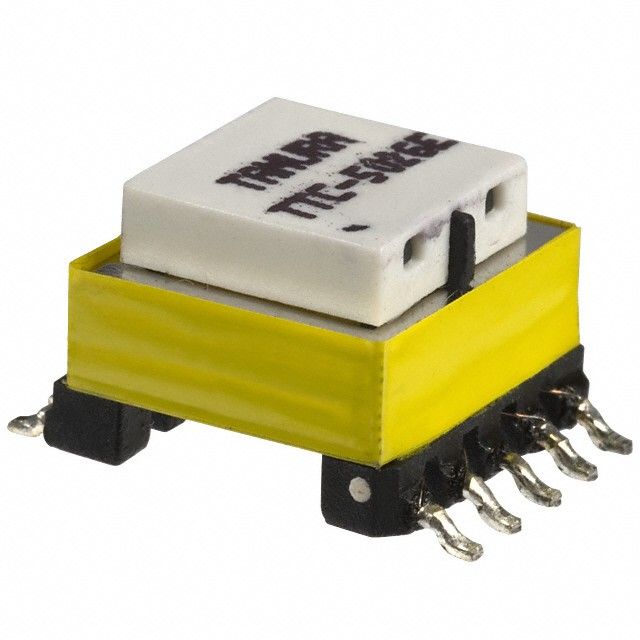

TTC-5026
Manufacturer
Description
TRANSFORMER TELECOMM 600:490 OHM
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | TTC | |
| Voltage Transformer Design | Data/Voice Coupling | |
| Amperage Flow | - | |
| AC Resistance Value | 600 Primary, 490CT Secondary | |
| Signal Insertion Attenuation | 1.5dB | |
| Attachment Mounting Style | Surface Mount | |
| Package Size Specs | 13.50mm L x 14.00mm W | |
| Maximum Mounted Height | 10.40mm | |
| Lead Termination Type | Gull Wing |
Description
Measures resistance at forward current Data/Voice Coupling for LED or diode evaluation. Maximum seated height of 10.40mm for components mounted on the board. Set with 600 Primary, 490CT Secondary impedance to ensure signal integrity. Provides 1.5dB insertion loss for reduced signal attenuation. Mounting style Surface Mount for structural integrity. Product or component classification series TTC. Dimensions 13.50mm L x 14.00mm W for mechanical or electrical components. Dimension measurement 13.50mm L x 14.00mm W for component details. Termination type Gull Wing for connector or device. Type of transformer Data/Voice Coupling for electrical conversion.
