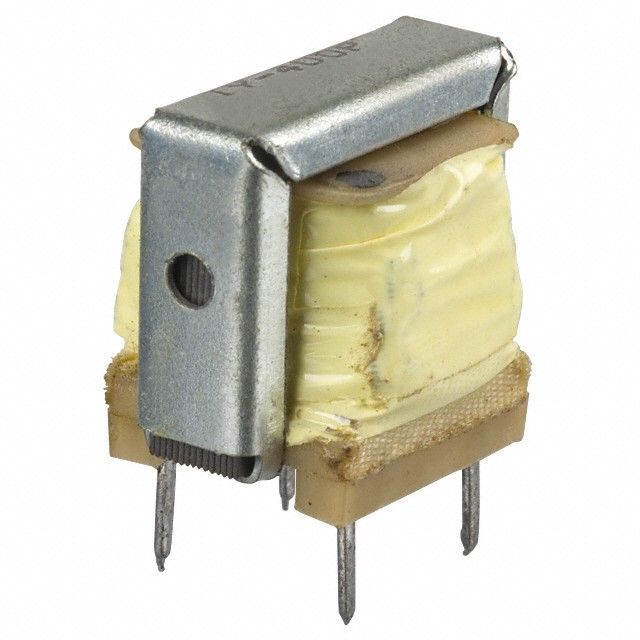

TY-400P

Description

Includes primary DCR recorded at 76.5Ohm. Offers secondary DCR specified as 108Ohm. Provides a 300Hz ~ 3.5kHz frequency range for wide-spectrum applications. Delivers ±0.5dB frequency response for reliable signal fidelity. Maximum seated height of 0.750" (19.05mm) for components mounted on the board. Primary impedance specified at 600 Ohms for electrical design purposes. Secondary impedance set at 600 Ohms for optimal load matching. Provides 1.75dB Typ insertion loss for reduced signal attenuation. Mounting style Through Hole for structural integrity. Operating temperature -20°C ~ 85°C for thermal stability. Enclosure Bulk for component protection or transport. Signal power level -45dB ~ 7dB for operational standards. Product condition Active for availability and lifecycle. Signal return loss 15dB Typ for quality and reflection. Product or component classification series TY. Dimensions 0.820" L x 0.715" W (20.83mm x 18.16mm) for mechanical or electrical components. Dimension measurement 0.820" L x 0.715" W (20.83mm x 18.16mm) for component details. Termination type PC Pin for connector or device. Type of transformer Data/Voice Coupling for electrical conversion. Turns ratio from primary to secondary 1:1.07 for transformers. Isolation voltage 1500VAC for electrical protection.
