Attribute
Description
Manufacturer Part Number
B82801A304A60
Manufacturer
Description

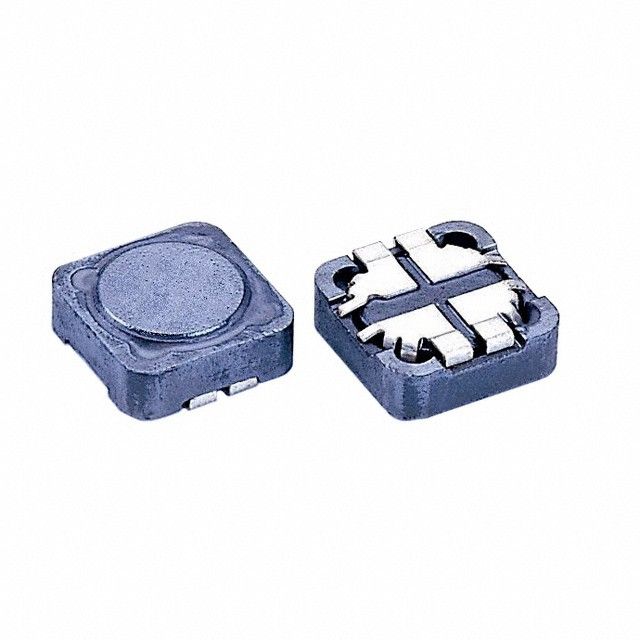

TRANSF CURRENT SENSE 295UH SMD
Manufacturer Lead Time
19 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | B82801A | |
| Voltage Transformer Design | - | |
| Transformer Turn Ratio | 1 : 60 | |
| Coil Inductance Value | 295µH | |
| Rated Current | 7A | |
| Direct Current Resistance | 2.5 mOhm Primary, 3.6 Ohm Secondary | |
| ET Rating | - | |
| Attachment Mounting Style | Surface Mount | |
| Package Size Specs | 4.70mm L x 3.50mm W | |
| Maximum Mounted Height | 3.50mm | |
| Lead Termination Type | J Lead |
Description
Provides a current rating of 7A. Offers DC resistance recorded at 2.5 mOhm Primary, 3.6 Ohm Secondary for precise circuit functionality. Maximum seated height of 3.50mm for components mounted on the board. Offers 295µH inductance for tuning and filtering circuits. Mounting style Surface Mount for structural integrity. Product or component classification series B82801A. Dimensions 4.70mm L x 3.50mm W for mechanical or electrical components. Dimension measurement 4.70mm L x 3.50mm W for component details. Termination type J Lead for connector or device. Turns ratio from primary to secondary 1 : 60 for transformers.
