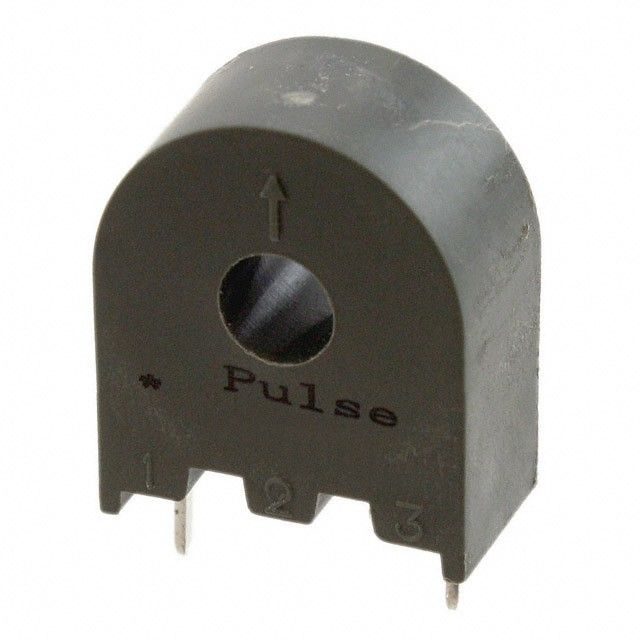

AP-2500
Data Sheet
Attribute
Description
Manufacturer Part Number
AP-2500
Manufacturer
Description
XFMR 50/60HZ PCB CL 0.2 2500:1
Note :
GST will not be applied to orders shipping outside of India
Stock: 16
Distributor: 58
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250 | ₹ 422.36 | ₹ 1,05,590.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | AP | |
| Voltage Transformer Design | - | |
| Transformer Turn Ratio | 2500 : 1 | |
| Coil Inductance Value | - | |
| Rated Current | 15A | |
| Direct Current Resistance | 330 Ohm Max | |
| ET Rating | - | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | 17.20mm L x 9.53mm W | |
| Maximum Mounted Height | 20.40mm | |
| Lead Termination Type | PC Pin |
Description
Provides a current rating of 15A. Offers DC resistance recorded at 330 Ohm Max for precise circuit functionality. Maximum seated height of 20.40mm for components mounted on the board. Mounting style Through Hole for structural integrity. Product or component classification series AP. Dimensions 17.20mm L x 9.53mm W for mechanical or electrical components. Dimension measurement 17.20mm L x 9.53mm W for component details. Termination type PC Pin for connector or device. Turns ratio from primary to secondary 2500 : 1 for transformers.
