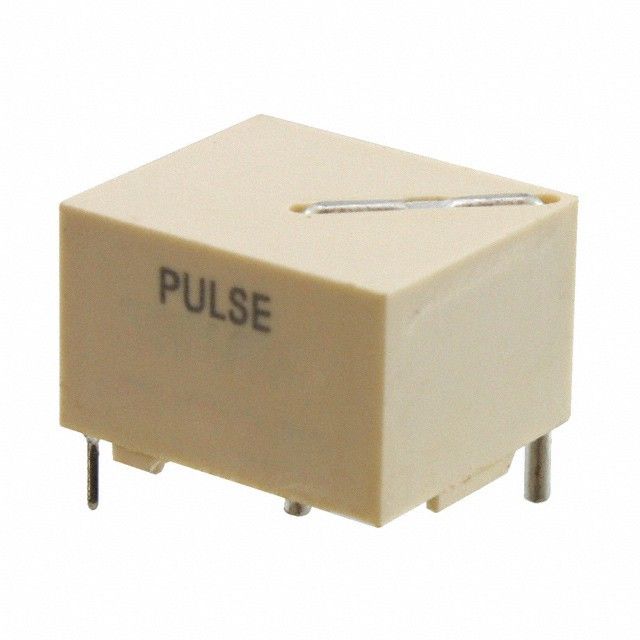

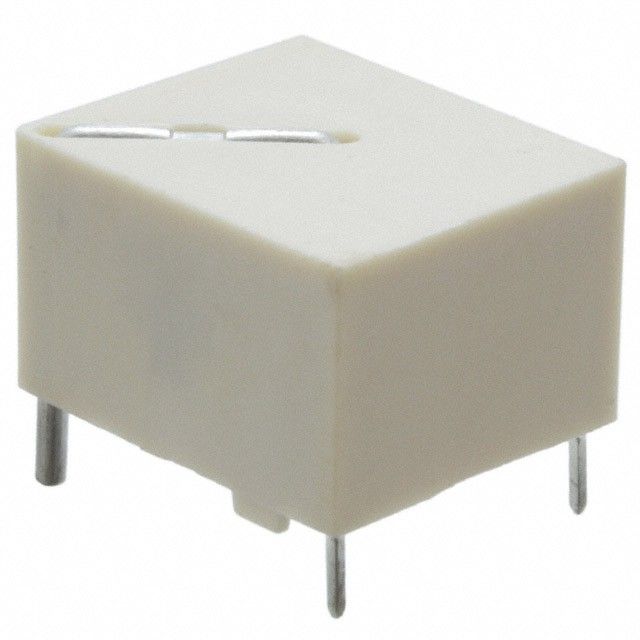

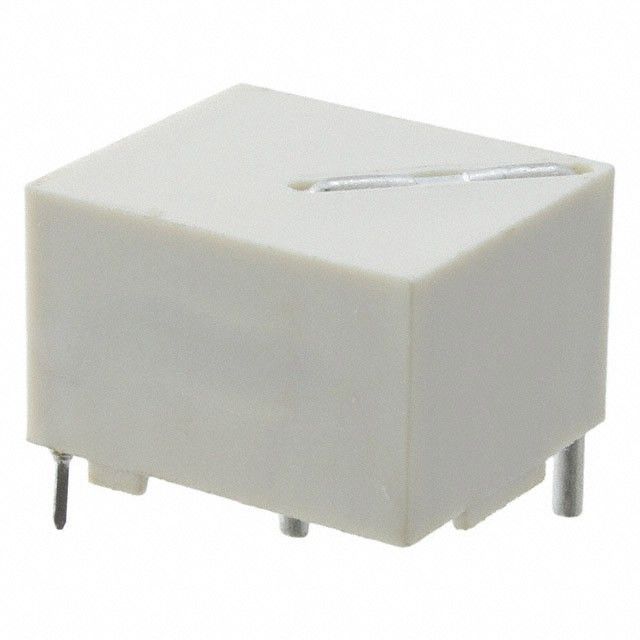

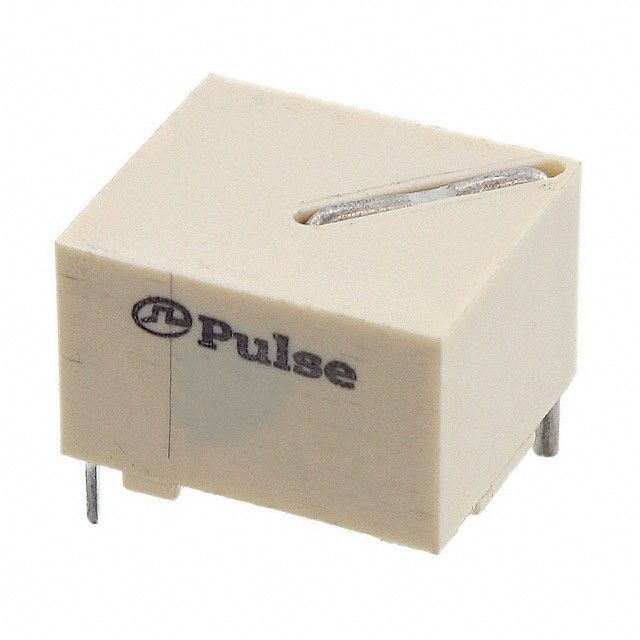

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Product Series Line | FIS 1X5 | |
| Voltage Transformer Design | Frequency 500kHz Max | |
| Transformer Turn Ratio | 1 : 200 | |
| Coil Inductance Value | 76mH | |
| Rated Current | 25A | |
| Direct Current Resistance | 4.5 Ohm Max | |
| ET Rating | 700V µS | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | 17.60mm L x 15.00mm W | |
| Maximum Mounted Height | 12.00mm | |
| Lead Termination Type | PC Pin |
Description
Measures resistance at forward current Frequency 500kHz Max for LED or diode evaluation. Provides a current rating of 25A. Offers DC resistance recorded at 4.5 Ohm Max for precise circuit functionality. Rated according to E.T. specifications with a value of 700V µS. Maximum seated height of 12.00mm for components mounted on the board. Offers 76mH inductance for tuning and filtering circuits. Mounting style Through Hole for structural integrity. Product or component classification series FIS 1X5. Dimensions 17.60mm L x 15.00mm W for mechanical or electrical components. Dimension measurement 17.60mm L x 15.00mm W for component details. Termination type PC Pin for connector or device. Type of transformer Frequency 500kHz Max for electrical conversion. Turns ratio from primary to secondary 1 : 200 for transformers.
