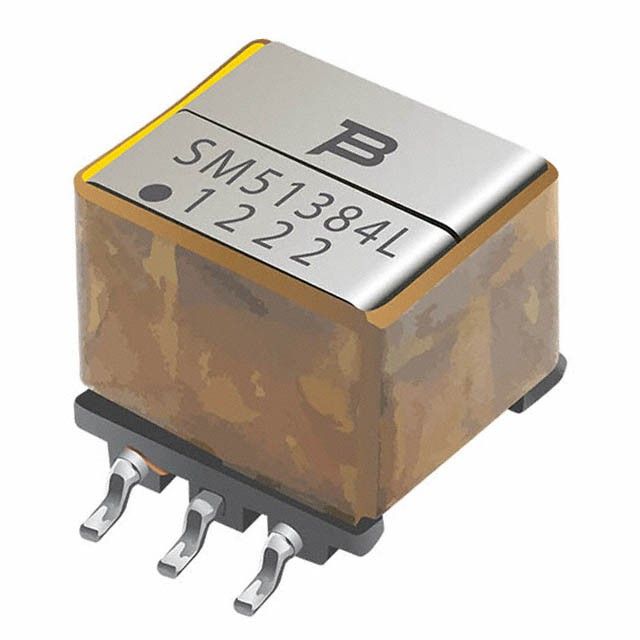

SM51384EL
Data Sheet
Attribute
Description
Manufacturer Part Number
SM51384EL
Manufacturer
Description
XFRMR LAMINATED SURFACE MOUNT
Manufacturer Lead Time
18 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Input Primary Voltage | 3.3V | |
| Loaded Secondary Volts | 5V | |
| Peak Output Current | - | |
| Input Coil Turns | Single | |
| Output Coil Turns | Single | |
| Midpoint Connection | Yes | |
| Maximum Power Handling | - | |
| Attachment Mounting Style | Surface Mount | |
| Lead Termination Type | Surface Mount | |
| Package Size Specs | - | |
| Maximum Mounted Height | 9.00mm | |
| Isolation Barrier Voltage | 4000Vrms |
Description
Features a center tap described as Yes for adaptable configuration. Maximum seated height of 9.00mm for components mounted on the board. Mounting style Surface Mount for structural integrity. Main winding(s) Single for transformer or coil configuration. Additional winding(s) Single for transformers or coils. Termination type Surface Mount for connector or device. Isolation voltage 4000Vrms for electrical protection. Primary voltage input 3.3V for transformers or circuits. Secondary voltage under full load 5V.
