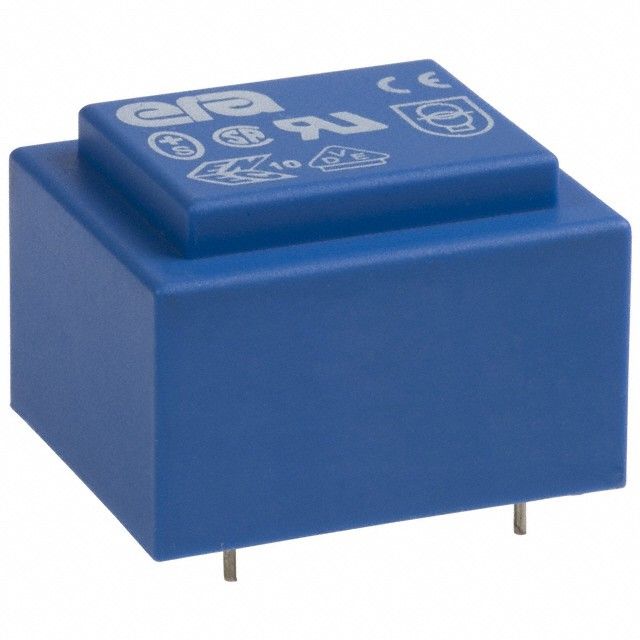

BV020-5378.0
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Input Primary Voltage | 115V | |
| Loaded Secondary Volts | Parallel 12V, Series 24V | |
| Peak Output Current | Parallel 42mA, Series 21mA | |
| Input Coil Turns | Single | |
| Output Coil Turns | Dual | |
| Midpoint Connection | No | |
| Maximum Power Handling | 0.5 VA | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | PC Pin | |
| Package Size Specs | 22.00mm L x 23.00mm W | |
| Maximum Mounted Height | 19.00mm | |
| Isolation Barrier Voltage | - |
Description
Features a center tap described as No for adaptable configuration. Delivers peak output current defined as Parallel 42mA, Series 21mA. Maximum seated height of 19.00mm for components mounted on the board. Mounting style Chassis Mount for structural integrity. Peak power 0.5 VA for device protection. Main winding(s) Single for transformer or coil configuration. Additional winding(s) Dual for transformers or coils. Dimensions 22.00mm L x 23.00mm W for mechanical or electrical components. Dimension measurement 22.00mm L x 23.00mm W for component details. Termination type PC Pin for connector or device. Primary voltage input 115V for transformers or circuits. Secondary voltage under full load Parallel 12V, Series 24V.
