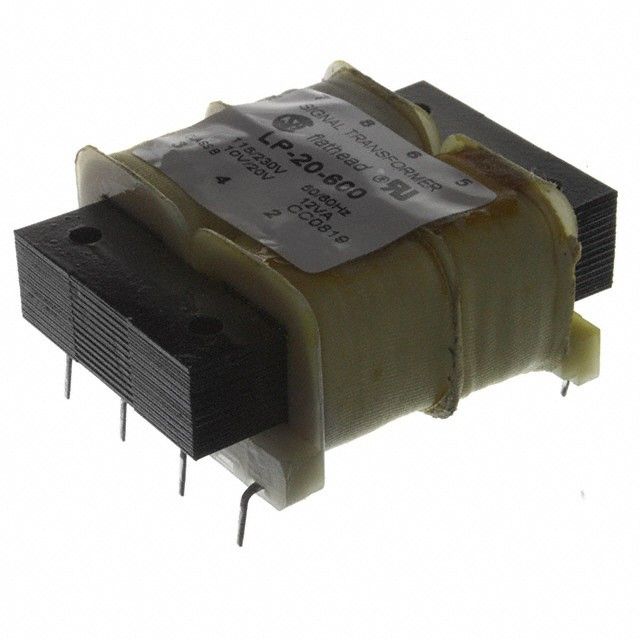

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Input Primary Voltage | 115V, 230V | |
| Loaded Secondary Volts | Parallel 10V, Series 20V | |
| Peak Output Current | Parallel 1.2A, Series 600mA | |
| Input Coil Turns | Dual | |
| Output Coil Turns | Dual | |
| Midpoint Connection | No | |
| Maximum Power Handling | 12 VA | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Package Size Specs | 63.50mm L x 50.80mm W | |
| Maximum Mounted Height | 27.05mm | |
| Isolation Barrier Voltage | 1500Vrms |
Description
Features a center tap described as No for adaptable configuration. Delivers peak output current defined as Parallel 1.2A, Series 600mA. Maximum seated height of 27.05mm for components mounted on the board. Mounting style Through Hole for structural integrity. Peak power 12 VA for device protection. Main winding(s) Dual for transformer or coil configuration. Additional winding(s) Dual for transformers or coils. Dimensions 63.50mm L x 50.80mm W for mechanical or electrical components. Dimension measurement 63.50mm L x 50.80mm W for component details. Termination type PC Pin for connector or device. Isolation voltage 1500Vrms for electrical protection. Primary voltage input 115V, 230V for transformers or circuits. Secondary voltage under full load Parallel 10V, Series 20V.
