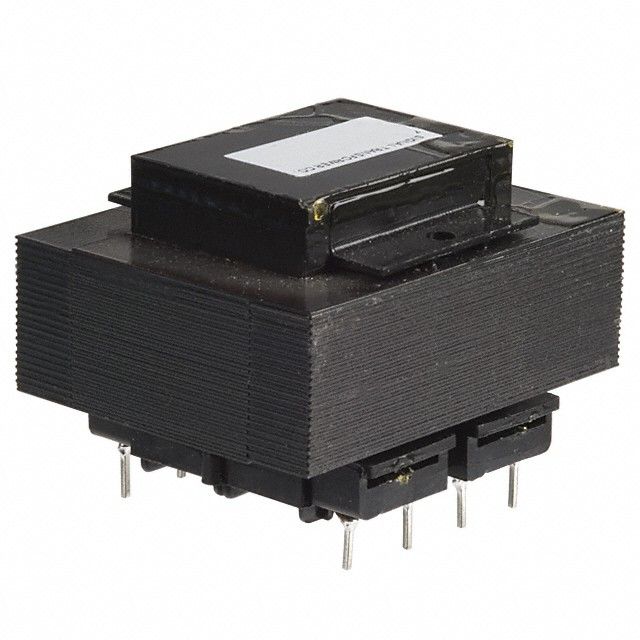

PLT20-32-130B
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Input Primary Voltage | 115V, 230V | |
| Loaded Secondary Volts | Parallel 9.3V, Series 27.5V | |
| Peak Output Current | Parallel 220mA, Series 1.5A | |
| Input Coil Turns | Dual | |
| Output Coil Turns | Dual | |
| Midpoint Connection | Yes | |
| Maximum Power Handling | 20 VA | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Package Size Specs | 57.20mm L x 47.60mm W | |
| Maximum Mounted Height | 41.38mm | |
| Isolation Barrier Voltage | 3500Vrms |
Description
Features a center tap described as Yes for adaptable configuration. Delivers peak output current defined as Parallel 220mA, Series 1.5A. Maximum seated height of 41.38mm for components mounted on the board. Mounting style Through Hole for structural integrity. Peak power 20 VA for device protection. Main winding(s) Dual for transformer or coil configuration. Additional winding(s) Dual for transformers or coils. Dimensions 57.20mm L x 47.60mm W for mechanical or electrical components. Dimension measurement 57.20mm L x 47.60mm W for component details. Termination type PC Pin for connector or device. Isolation voltage 3500Vrms for electrical protection. Primary voltage input 115V, 230V for transformers or circuits. Secondary voltage under full load Parallel 9.3V, Series 27.5V.
