Attribute
Description

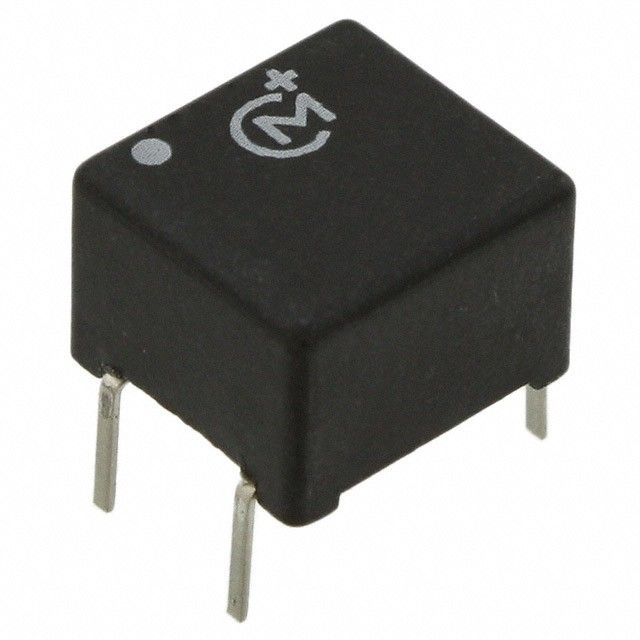

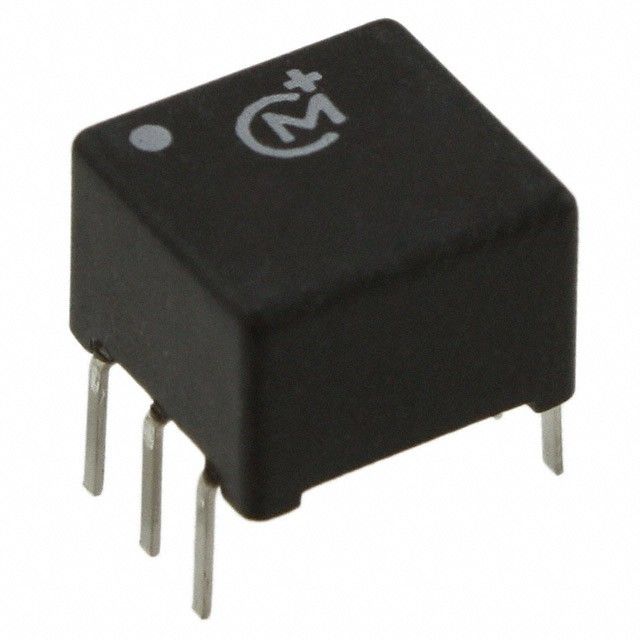

Manufacturer Part Number
78601/1C
Manufacturer
Description
TRANSFORMER,
PULSE,
1:1,...
Manufacturer Lead Time
10 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Voltage Transformer Design | - | |
| Coil Inductance Value | 2mH | |
| Transformer Turn Ratio | 0.0423611111111 | |
| ET Rating | 20V µS | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | 9.52mm L x 9.00mm W | |
| Maximum Mounted Height | 6.35mm |
Description
Rated according to E.T. specifications with a value of 20V µS. Maximum seated height of 6.35mm for components mounted on the board. Offers 2mH inductance for tuning and filtering circuits. Mounting style Through Hole for structural integrity. Dimensions 9.52mm L x 9.00mm W for mechanical or electrical components. Dimension measurement 9.52mm L x 9.00mm W for component details. Turns ratio from primary to secondary 0.0423611111111 for transformers.
