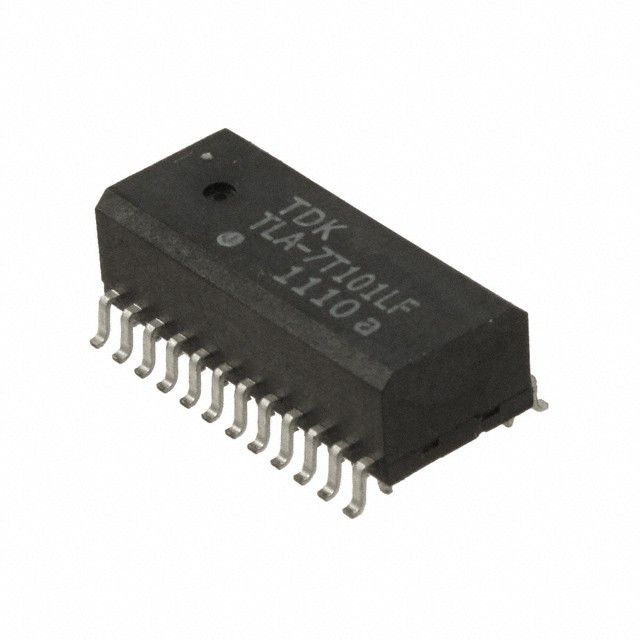

TLA-7T101LF-T
Data Sheet
Attribute
Description
Manufacturer Part Number
TLA-7T101LF-T
Manufacturer
Description
TRANSFORMER LAN 10/100/1000 T
Manufacturer Lead Time
21 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Voltage Transformer Design | - | |
| Coil Inductance Value | 350µH | |
| Transformer Turn Ratio | 1CT : 1CT | |
| ET Rating | - | |
| Attachment Mounting Style | Surface Mount | |
| Package Size Specs | 15.82mm L x 6.74mm W | |
| Maximum Mounted Height | 5.90mm |
Description
Maximum seated height of 5.90mm for components mounted on the board. Offers 350µH inductance for tuning and filtering circuits. Mounting style Surface Mount for structural integrity. Dimensions 15.82mm L x 6.74mm W for mechanical or electrical components. Dimension measurement 15.82mm L x 6.74mm W for component details. Turns ratio from primary to secondary 1CT : 1CT for transformers.
