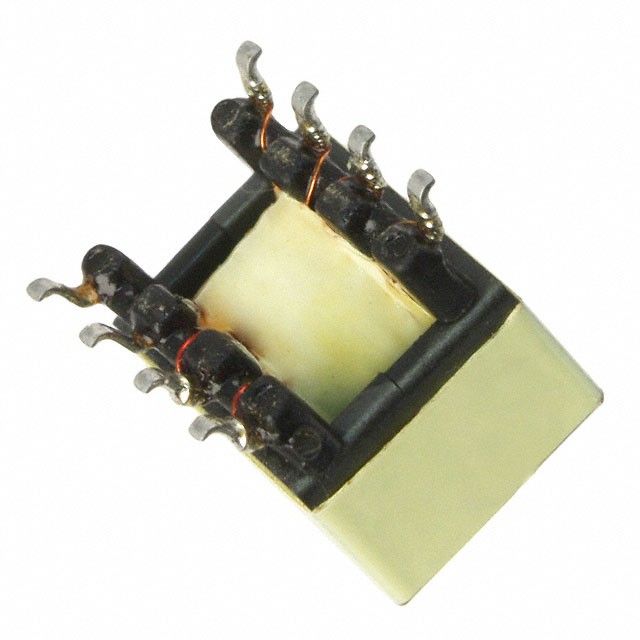

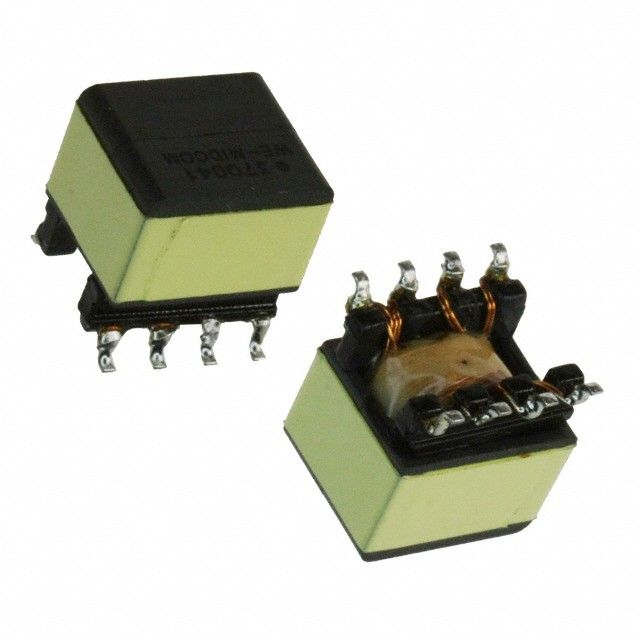

750370047
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Device Type Classification | For DC/DC Converters | |
| Target Chipset | LT3573, LT3574, LT3575, LT3748 | |
| Input Primary Voltage | 10 ~ 30V | |
| Aux Voltage | 5V @ 20mA | |
| Isolation Barrier Voltage | 1500Vrms | |
| Oscillation Rate Hz | 250 ~ 500kHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |
| Package Size Specs | 13.35mm L x 10.80mm W | |
| Maximum Mounted Height | 9.14mm |
Description
Measures resistance at forward current For DC/DC Converters for LED or diode evaluation. Operates at a frequency of 250 ~ 500kHz. Maximum seated height of 9.14mm for components mounted on the board. Engineered for LT3573, LT3574, LT3575, LT3748 chipset for peak performance. Mounting style Surface Mount for structural integrity. Operating temperature -40°C ~ 125°C for thermal stability. Dimensions 13.35mm L x 10.80mm W for mechanical or electrical components. Dimension measurement 13.35mm L x 10.80mm W for component details. Category For DC/DC Converters for classification or specification. Peak Vce(on) at Vge For DC/DC Converters for transistor parameters. Auxiliary voltage 5V @ 20mA for additional circuits. Isolation voltage 1500Vrms for electrical protection. Primary voltage input 10 ~ 30V for transformers or circuits.
