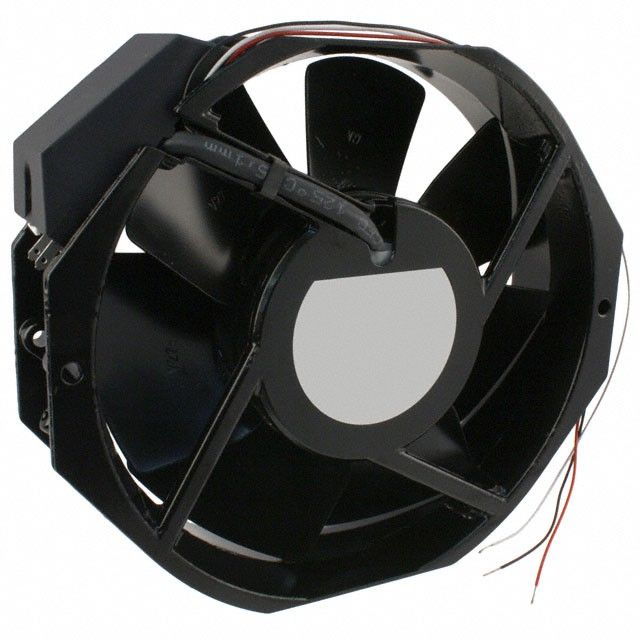

W2E142-BB01-87
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| AC Fan Model | Tubeaxial | |
| AC Fan Bearing Style | Ball | |
| Max Voltage Specification | 230VAC | |
| Ventilation Rate | 230.0 CFM (6.51m³/min) | |
| Airflow Static Pressure | - | |
| Electrical Noise Level | 57 dB(A) | |
| Power Rating | 28.0W | |
| Revolutions Per Minute | - | |
| Ambient Temp Range | -40 ~ 176°F (-40 ~ 80°C) | |
| Circuit End Method | 2 Terminals | |
| Package Size Specs | Rectangular/Rounded - 172mm L x 150mm H x 38mm W |
Description
Comes with a Ball bearing style to enhance fan longevity and movement. Incorporates a Tubeaxial AC fan design for optimal airflow efficiency. Provides airflow rated at 230.0 CFM (6.51m³/min) for effective cooling. Measures resistance at forward current Tubeaxial for LED or diode evaluation. Sound level 57 dB(A) for acoustic or electronic efficiency. Operating temperature -40 ~ 176°F (-40 ~ 80°C) for thermal stability. Energy 28.0W for device power needs. Dimensions Rectangular/Rounded - 172mm L x 150mm H x 38mm W for mechanical or electrical components. Dimension measurement Rectangular/Rounded - 172mm L x 150mm H x 38mm W for component details. Termination method 2 Terminals for electrical or mechanical linkage. Peak Vce(on) at Vge 230VAC for transistor parameters. Voltage specification 230VAC for components.
