IXKN40N60C
Data Sheet
Attribute
Description
Manufacturer Part Number
IXKN40N60C
Manufacturer
Description
MOSFET N-CH 600V 40A SOT-227B
Manufacturer Lead Time
38 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 600V | |
| Continuous Drain Current at 25C | 40A | |
| Max On-State Resistance | 70 mOhm @ 500mA, 10V | |
| Max Threshold Gate Voltage | 3.9V @ 2.5mA | |
| Gate Charge at Vgs | 250nC @ 10V | |
| Input Cap at Vds | - | |
| Maximum Power Handling | - | |
| Attachment Mounting Style | Chassis Mount | |

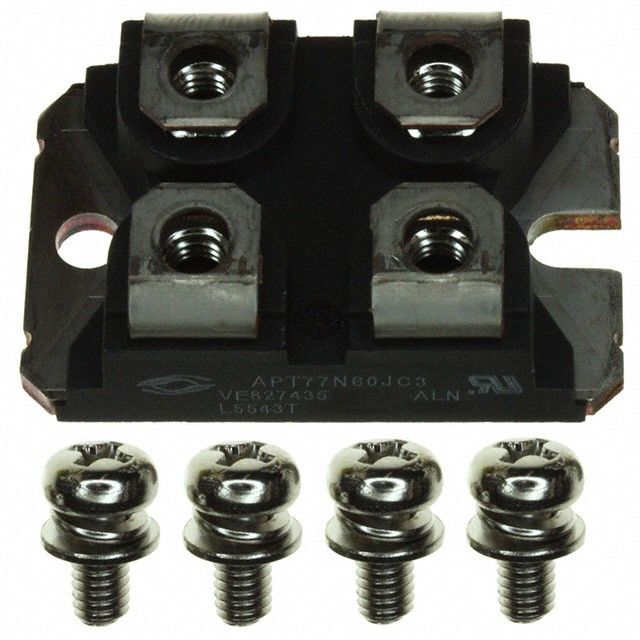

| Component Housing Style | SOT-227-4, miniBLOC |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 40A at 25°C. Supports Vdss drain-to-source voltage rated at 600V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 250nC @ 10V gate charge at Vgs for reliable MOSFET functionality. Mounting style Chassis Mount for structural integrity. Enclosure/case SOT-227-4, miniBLOC providing mechanical and thermal shielding. Peak Rds(on) at Id 250nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 70 mOhm @ 500mA, 10V for MOSFET criteria. Peak Vgs(th) at Id 3.9V @ 2.5mA for MOSFET threshold level.
