BCX5316-13R
Data Sheet
Attribute
Description
Manufacturer Part Number
BCX5316-13R
Manufacturer
Description
Transistors - Bipolar (BJT) -Single & Arrays,
PNP,
1A,
80V
Manufacturer Lead Time
28 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | PNP | |
| Maximum Collector Amps | 1A | |
| Max Collector-Emitter Breakdown | 80V | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | |
| Collector Cutoff Max | 100nA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V | |
| Maximum Power Handling | 1W | |
| Transition Freq | 150MHz | |
| Attachment Mounting Style | Surface Mount | |

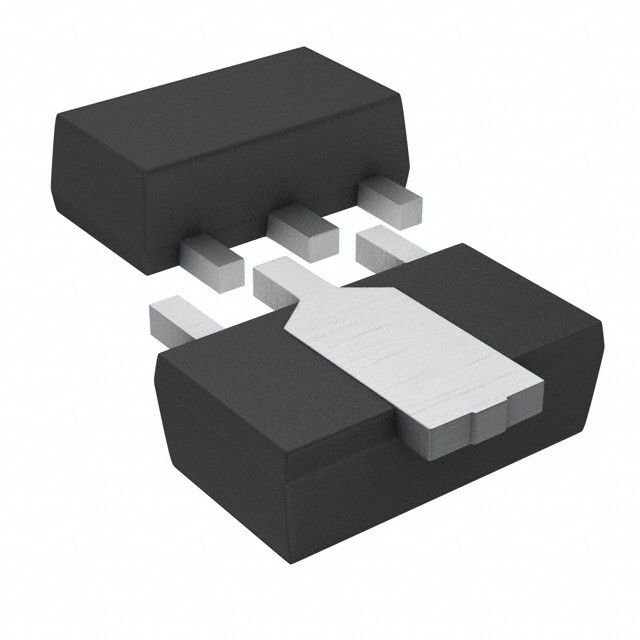

| Component Housing Style | TO-243AA |
Description
Measures resistance at forward current 100nA (ICBO) for LED or diode evaluation. Provides a maximum collector current (Ic) of 1A. Offers a collector cutoff current rated at 100nA (ICBO). Features a DC current gain hFE at Ic evaluated at 500mV @ 50mA, 500mA. Offers 150MHz transition frequency for seamless signal modulation. Mounting style Surface Mount for structural integrity. Enclosure/case TO-243AA providing mechanical and thermal shielding. Peak power 1W for device protection. Type of transistor PNP for circuit architecture. Peak Vce(on) at Vge 500mV @ 50mA, 500mA for transistor parameters. Highest collector-emitter breakdown voltage 80V.
