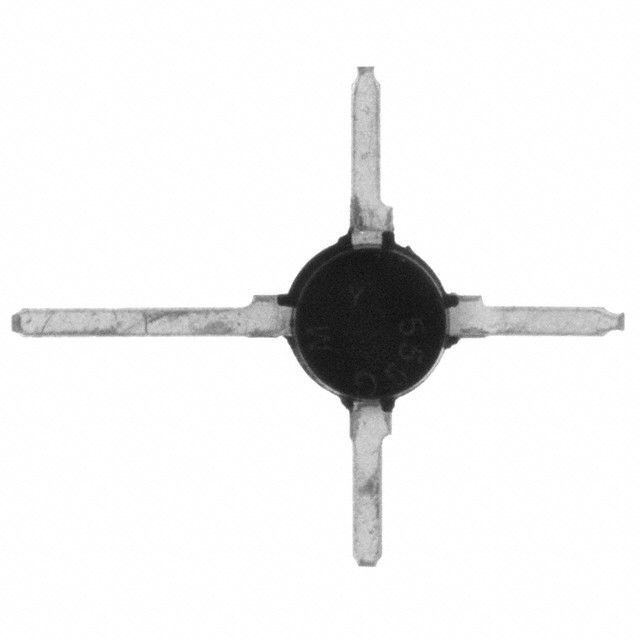

MRF559G
Data Sheet
Attribute
Description
Manufacturer Part Number
MRF559G
Manufacturer
Description
TRANS NPN 16V 150MA MACRO X
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN | |
| Max Collector-Emitter Breakdown | 16V | |
| Transition Freq | - | |
| Noise Figure @ f | - | |
| Amplification Factor | 8dB ~ 9.5dB | |
| Maximum Power Handling | 2W | |
| DC Current Gain (hFE) @ Ic, Vce | 30 @ 50mA, 10V | |
| Maximum Collector Amps | 150mA | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Micro-X ceramic (84C) |
Description
Provides a maximum collector current (Ic) of 150mA. Features a DC current gain hFE at Ic evaluated at 30 @ 50mA, 10V. Delivers 8dB ~ 9.5dB gain to improve signal amplification efficiency. Mounting style Surface Mount for structural integrity. Enclosure/case Micro-X ceramic (84C) providing mechanical and thermal shielding. Peak power 2W for device protection. Type of transistor NPN for circuit architecture. Peak Vce(on) at Vge 8dB ~ 9.5dB for transistor parameters. Highest collector-emitter breakdown voltage 16V.
