Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 60V | |
| Continuous Drain Current at 25C | 20A (Ta), 50A (Tc) | |
| Max On-State Resistance | 8.5 mOhm @ 20A, 10V | |
| Max Threshold Gate Voltage | 2.5V @ 250µA | |
| Gate Charge at Vgs | 32nC @ 10V | |
| Input Cap at Vds | 2435pF @ 30V | |
| Maximum Power Handling | 6.2W | |
| Attachment Mounting Style | Surface Mount | |

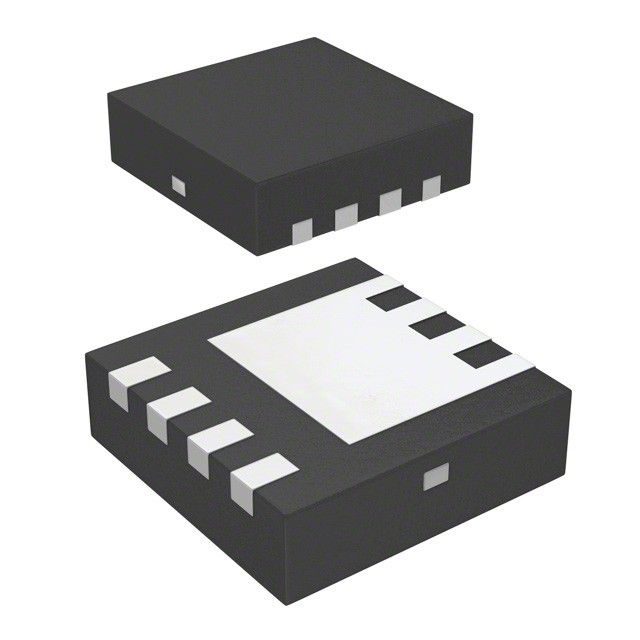

| Component Housing Style | 8-PowerWDFN |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 20A (Ta), 50A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 60V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 32nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 2435pF @ 30V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case 8-PowerWDFN providing mechanical and thermal shielding. Peak power 6.2W for device protection. Peak Rds(on) at Id 32nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 8.5 mOhm @ 20A, 10V for MOSFET criteria. Peak Vgs(th) at Id 2.5V @ 250µA for MOSFET threshold level.
