Data Sheet
Attribute
Description
Manufacturer Part Number

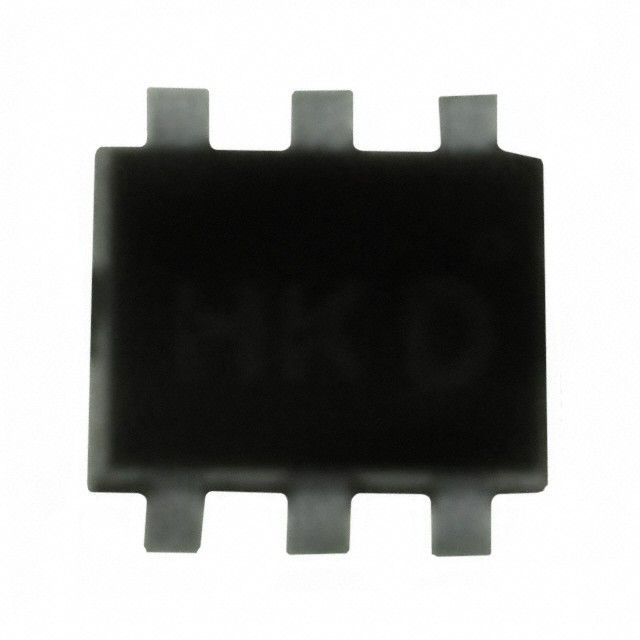

2N7002DW-TP
Manufacturer
Description
MOSFET 2N-CH 60V 115MA SOT-363
Manufacturer Lead Time
18 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 6.50 | ₹ 6.50 |
| 10 | ₹ 6.50 | ₹ 65.00 |
| 100 | ₹ 6.50 | ₹ 650.00 |
| 250 | ₹ 6.50 | ₹ 1,625.00 |
| 500 | ₹ 6.50 | ₹ 3,250.00 |
| 1000 | ₹ 5.96 | ₹ 5,960.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 45.39 | ₹ 45.39 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 133 | ₹ 91.67 | ₹ 12,192.11 |
| 366 | ₹ 87.22 | ₹ 31,922.52 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | 2 N-Channel (Dual) | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 115mA | |
| Rds On (Max) @ Id, Vgs | 7.5 Ohm @ 50mA, 5V | |
| Vgs(th) (Max) @ Id | 2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 50pF @ 25V | |
| Power - Max | 200mW | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
